ZS Light linear vibrating screen, Stainless steel vibrating screen

Introduction
The Linear Vibrating Screen is a kind of closed and lightweight linear vibrating sifting equipment that is commonly used, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen of the sifter, materials evenly go into the feed port of the linear vibrating screen from the feeding machine, generate multi-standards materials through the multilayer screen and be discharged from each discharge hole.

wooden screen frame and steel screen frame

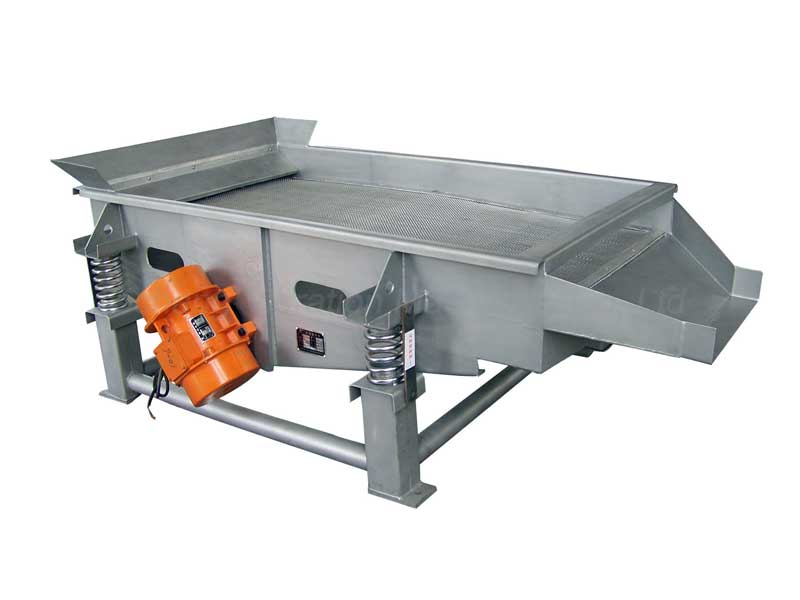

ZS Light Linear Vibrating Screen

The following table shows the detailed data of different models of Linear vibrating screen shaker machine for your reference.

type	Screen size	Screen layer	Mesh size	Handling capacity	Vibration times		Double-amplitude		Power of motor	Vibration direction angle	Outline dimension （length×width×height）
ZS520		1 2 3 1 2 3 4 5 6	2-200	0.05-5	960	6-7		2×0.4		45-60	2140×808×848
2ZS520	500×2000			0.05-5	960		6-7	2×0.4		45-60	2199×808×878
3ZS520	500×2500			0.03-5	1450		4-6	2×0.4		45	2256×808×938
ZS525				0.06-8	960		5-7	2×0.4		45-60	2642×808×848
2ZS525				0.06-8	1450		4-6	2×0.4		45	2699×808×878
3ZS525				0.06-8	960		6-8	2×0.75		45-60	2750×808×938
4ZS525				0.1-15	1450		5-7	2×0.4		45	2813×808×1000
5ZS525				0.08-15	1450		5-7	2×0.4		45	2883×808×1060
6ZS525				0.07-15	960		6-8	2×0.75		45-60	2953×808×1120
ZS1020	1000×2000	1		0.12-20	960		6-8	2×0.75		45-60	2152×1320×900
2ZS1020		2		0.11-20	960		5-7	2×0.75		45-60	2219×1320×960
3ZS1020	1000×2000	3	2-200	0.10-2	960		5-7	2×0.75		45-60	2286×1320×1030
4ZS1020		4		0.07-15	960		4-8	2×0.75		45-60	2353×1320×1100
5ZS1020		5		0.07-15	960		4-8	2×1.5		45-60	2420×1320×1160
6ZS1020		6		0.07-15	960		4-8	2×1.5		45-60	2487×1320×1220
ZS1025	1000×2500	1		0.1-15	1450		5-7	2×0.4		45	2203×1320×900
2ZS1025		2		0.08-15	1450		5-7	2×0.4		45	2269×1320×960
3ZS1025		3		0.07-15	960		6-8	2×0.75		45-60	2336×1320×1030
ZS830 2ZS830 3ZS830	800×3000	1 2 3		0.1-20	960		6-8	2×0.75		45-60	3080×1098×1120
				0.1-20	960		6-8	2×0.75		45-60	3140×1098×1180
				0.1-20	960		6-8	2×1.5		45-60	3200×1098×1240
ZS1030	1000×3000	1		0.1-20	960		6-8	2×0.75		45-60	3152×1340×1120
2ZS1030		2		0.1-20	960		6-8	2×1.5		45-60	3219×1340×1120
3ZS1030		3		0.1-20	960		6-8	2×1.5		45-60	3286×1340×1120
ZS1224	1200×2400	1		0.1-23	960		6-8	2×0.75		45-60	2480×1520×1100
2ZS1224		2		0.1-23	960		6-8	2×0.75		45-60	2540×1520×1160
3ZS1224		3		0.1-23	960		6-8	2×1.5		45-60	2600×1520×1220

1. Less energy consumption, low noise, long service life of the screen.
2. High accuracy in screening, high yield and simple structure.
3. Totally closed structure, automatic discharging, more suitable for assembly line work.
4. The weld joints of each part of the sieve body adopt rolled plate and proximate matter (part of the group adopt bolted connection), it has such characteristics as good integral rigidity and fastness and reliability.

Linear vibrating screen sieve is widely used in food industry, such as: grains, beans, mining industry, such as stone, coal, minieral, sand, chemical industry, such as coating powder, calcium carbonate, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
