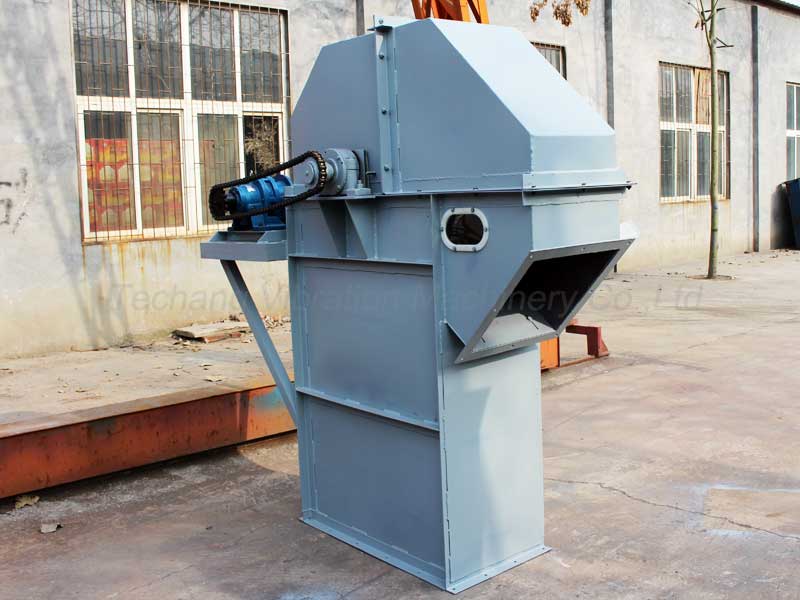

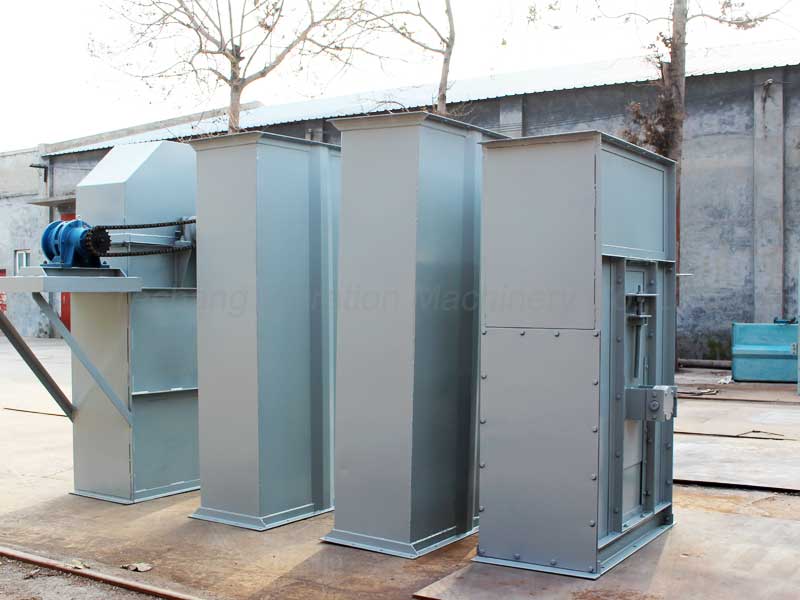

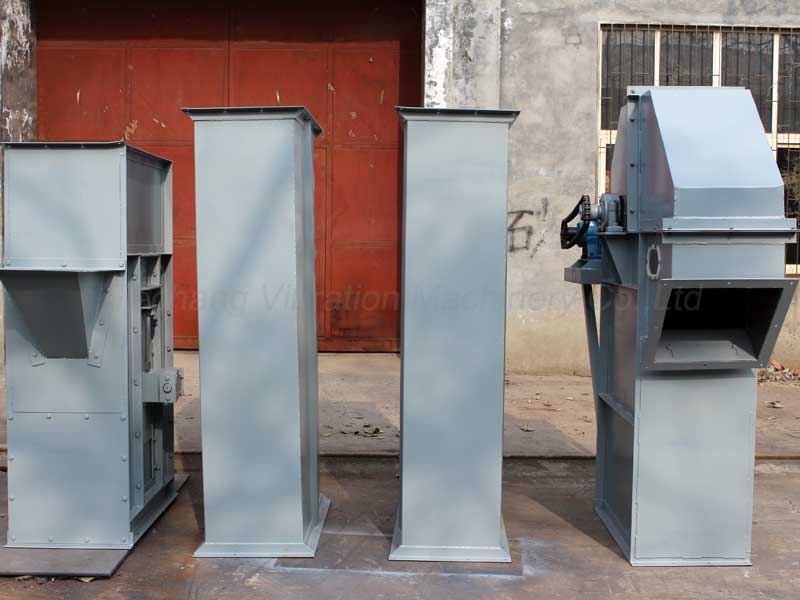

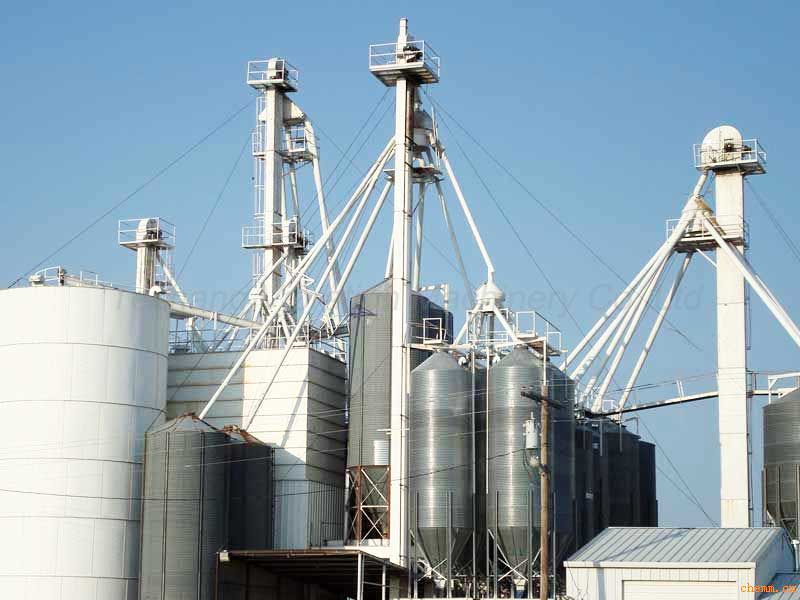

Ring Chain Bucket Elevator,bucket elevator,Belt bucket elevator

TH Ring Chain Bucket Elevator is applied to vertically convey rubbed powder, granular and small lump materials such as grain, coal, cement and gravel ore, the materials temperature shall not exceed 250℃.
Characteristics
1、Simple structure, stable operation, take-out charging, mixing or gravitational unloading
2、The traction assemblies adopt high-intensive ring chain which has long life upon special handling and can be replaced easily, the bottom part adopts automatic tension device against gravity, which can keep the tension constant and avoid slip or out-of-chain conditions, at the meantime, have certain yieldability that can effectively protect the moving parts when the hopper is blocked.
3、Compact installment, saving space
4. The complete sealed structure

Model	TH160		TH200		TH250		TH315		TH400
Bucket Type	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh
Capacity (m3/h)	15	25	18	29	31	48	46	80	80	125
Bucket Width (mm)	160		200		250		315		400
Bucket Volume (L)	1.2	1.9	1.5	2.4	3	4.6	3.8	6	5.9	9.5
Bucket Pitch (mm)	500						512
Chain Specification (diameter×pitch) /mm	14×50						18×64
Chain Quantity	2						2
Single Chain Broken Load /kN	≥190						≥320
Bucket Speed (m/s)	1.2						1.4
Driving Pulley Diameter (mm)	300		365		520		630		710
Driving Shaft Rotation Speed (r/min)	69.71		63.22		44.11		42.5		37.6
Max. Material Size (mm)	20		25		30		35		40

Model	TH500		TH630		TH800		TH1000
Bucket Type	zh	sh	zh	sh	zh	sh	zh	sh
Capacity (m3/h)	100	157	152	246	177	280	294	456
Bucket Width (mm)	500		630		800		1000
Bucket Volume (L)	9.3	15	15	24	23	38	38	58
Bucket Pitch (mm)	688				920
Chain Specification (diameter×pitch) /mm	22×86				26×92
Chain Quantity	2				2
Single Chain Broken Load /kN	≥480				≥570
Bucket Speed (m/s)	1.5				1.6
Driving Pulley Diameter (mm)	800		900		1000		1250
Driving Shaft Rotation Speed (r/min)	35.8		31.8		30.5		24.4
Max. Material Size (mm)	50		60		65		70

TH ring chain bucket elevator hopper use:
Zh deep bucket: conveying wet sticky materials, such as sugar, wet sand.
Sh - deep bucket: conveying heavy powder to small pieces of material, such as cement, sand, coal, etc.
